Installation methods

Wall Mount

Magnetic Mounting

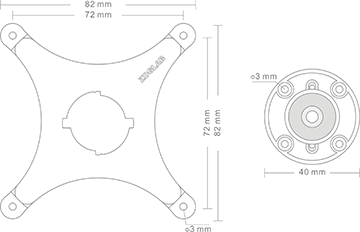

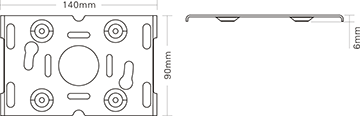

Dimensions

Installation methods

Wall Mount

Fix the backup shelf onto the wall with 4 M4 screws, and fix the transmitter onto the shelf with 2 M3 screws. Driving the M3 screws in each of the bottle-gourd-like hole until they are fasten into the wall.

Pole mount

Make the shell stand, and put it cross the backup shelf, buckle the two male part in the middle of the shell to the two female part of the backup shelf, fix the two hole with 2 ‘U type’ M6 screws, and drive other 4 M6 screws to the other four edges to fix it.

Flange mount

Dig DST3000’s back round cove through, set probe on DST3000 through this round hole, and install flange on the transmitter, drive the screws tight until they are fastened.
